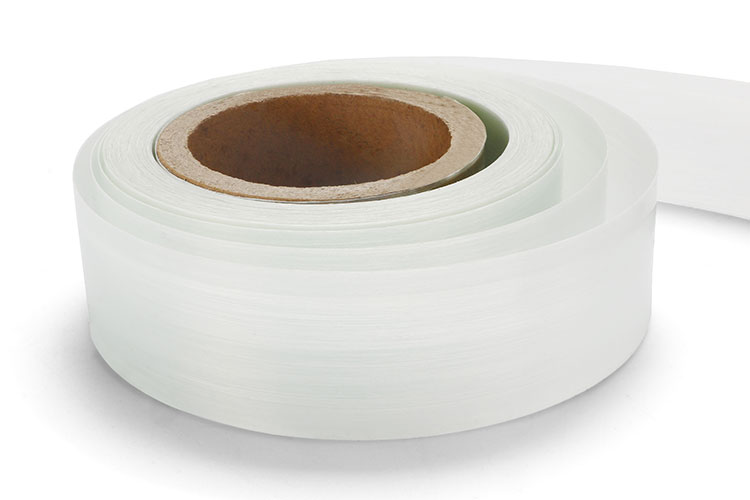

GPETG UD Tapes is a composite material of continuous glass fiber and PETG (Polyethylene terephthalate glycol) resin. It is safe, environmentally friendly and recyclable.
- Resin: PETG (Polyethylene terephthalate glycol).
- Fiber: Continuous glass fiber.
Description
Specifications
| Items | Standards | Condition | Unit | Value |
| Density | / | 23℃ | g/m3 | 1.79 |
| Glass Fiber Content | / | 23℃ | %wt | 55 |
| Tape Thickness | / | 23℃ | mm | 0.3 |
Mechanical Properties
| Tensile Strength | ISO 527-5/ Tape | 10mm/min | MPa | 700 |
| Flexural Strength | ISO 14125 | 2 mm/min | MPa | 885 |
| Flexural Modulus | ISO 14125 | 2 mm/min | GPa | 31 |
