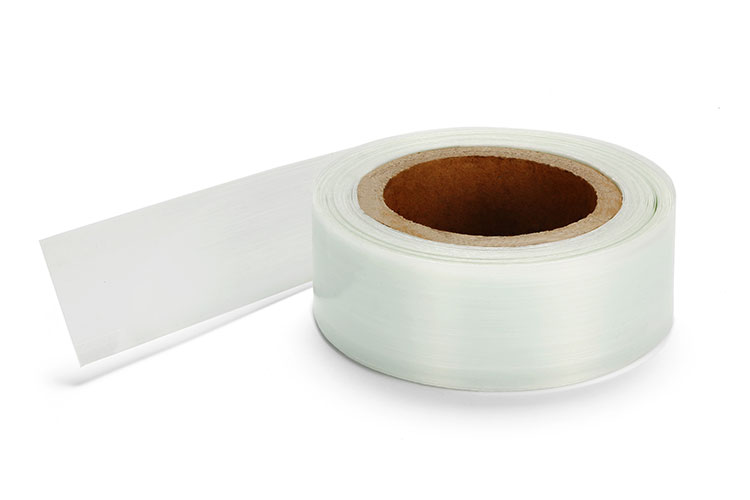

GPE UD tape is a glass fiber reinforced thermoplastic tape specially designed for RTP oil pipes. It is flexible, corrosion-resistant, high-pressure resistant, impact-resistant, wear-resistant, and lightweight. It can well overcome the corrosion problem of steel pipes and the pressure resistance problem of plastic pipes. It can be used in oil and natural gas mining, high-pressure long-distance transportation and various pipeline fields that require higher pressure transportation media.
- Type: GPE700, GPE800, GPE900.
- Resin: PE (Polyethylene).
- Fiber: Continuous glass fiber.
Description
GPE700 Series
| Items | Standards | Range | Unit | Value |
| Width | / | / | mm | 300±0.5 |
| Thickness | / | / | mm | 0.30±0.02 |
| Density | ASTM D792-08 | 1.5±0.05 | g/cm3 | 1.54 |
| Fiberglass Content | ASTM D5630 | 65±3 | %wt | 64.82 |
| Tensile Strength | ASTM D638 | ≧600 | MPa | 697 |
| Elongation at Break | ASTM D638 | ≧2.0 | MPa | 2.16
|
GPE800 Series
| Items | Standards | Unit | Value |
| Width | / | mm | 30~300 |
| Thickness | / | mm | 0.30±0.02 |
| Density | ISO1183 | g/cm3 | 1.63 |
| Fiberglass Content | / | %wt | 65 |
| Tensile Strength | ISO527-5/Tape | MPa | 800 |
| Tensile Modulus | ISO527-5/Tape | GPa | 29 |
| Elongation | ISO527-5/Tape | % | 2.5 |
| Flexural Strength | ISO14125 | MPa | 450 |
| Flexural Modulus | ISO14125 | GPa | 28 |
| Interlaminar Shear Strength | ISO14130 | MPa | 19 |
| X Orientation CLTE | ISO11359 | μm/(m. oC) | 10 |
| Y Orientation CLTE | ISO11359 | μm/(m. oC) | 126 |
| Z Orientation CLTE | ISO11359 | μm/(m. oC) | 115 |
| Melting Temperature | ISO11357 | oC | 128 |
| Glass Transition Temperature | ISO11357 | oC | -109 |
GPE900 Series
| Items | Standards | Unit | Value |
| Width | / | mm | 30~300 |
| Thickness | / | mm | 0.25±0.02 |
| Density | ISO1183 | g/cm³ | 1.72 |
| Fiberglass Content | / | %wt | 70 |
| Tensile Strength | ISO527-5/Tape | MPa | 900 |
| Tensile Modulus | ISO527-5/Tape | GPa | 35 |
| Elongation | ISO527-5/Tape | % | 2.5 |
| Flexural Strength | ISO14125 | MPa | 485 |
| Flexural Modulus | ISO14125 | GPa | 34 |
| Interlaminar Shear Strength | ISO14130 | MPa | 20 |
| X Orientation CLTE | ISO11359 | μm/(m. oC) | 11 |
| Y Orientation CLTE | ISO11359 | μm/(m. oC) | 108 |
| Z Orientation CLTE | ISO11359 | μm/(m. oC) | 177 |
| Melting Temperature | ISO11357 | oC | 128 |
| Glass Transition Temperature | ISO11357 | oC | -109 |
| Deflection Temperature | ISO75-2 | oC | 133 |
