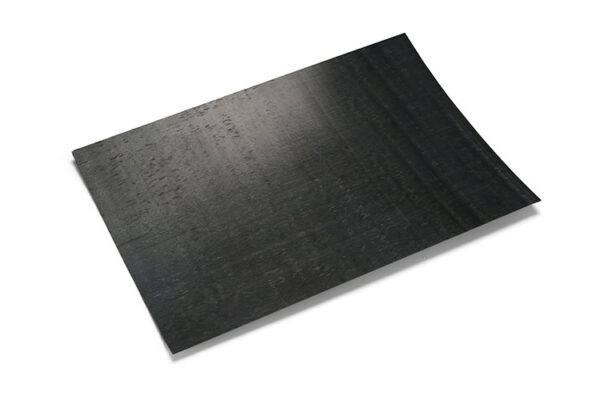

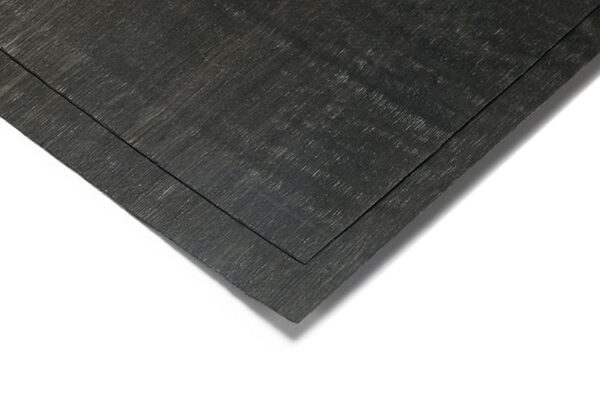

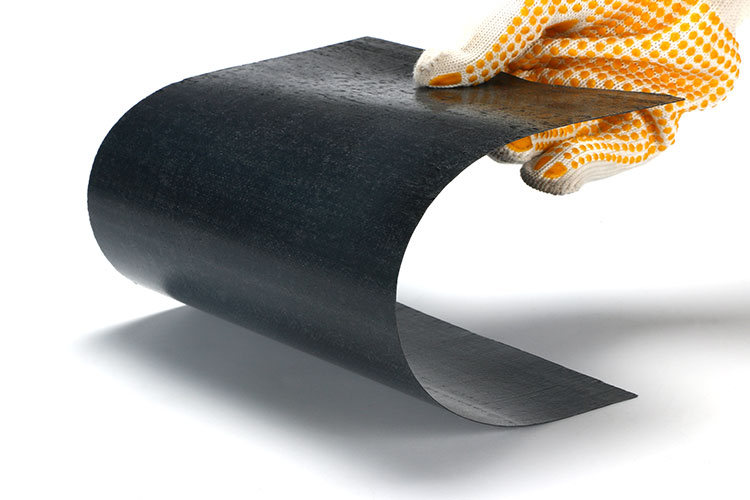

CPA6 carbon fiber UD tape is a continuous carbon fiber reinforced PA6 UD tape with 50% carbon fiber content. It is useful in car parts including accelerator, brake pedal, seat frame & seat base, etc.
- Low cost.
- Lightweight.
- High strength and modulus.
- Excellent impact resistance.
- No VOC, environmental, completely recyclable.
Description
The PA6 matrix is relatively evenly distributed among the carbon fibers. There are fewer pores inside the prepreg tape. The bonding between the matrix and the fibers is better. The external load can be effectively transmitted to the carbon fibers through the matrix.
Specifications
| Items | Standards | Condition | Unit | Value |
| Density | ISO1183 | 23℃ | g/cm3 | 1.38 |
| Fiber Content | ISO3451 | 23℃ | %wt | 50 |
| Tape Thickness | / | 23℃ | mm | 0.30 |
Mechanical Properties
| UD Tensile Strength | ISO527-3 | 10mm/min | MPa | 1200 |
| 0/90 Tensile Strength | ISO527-4 | 2 mm/min | MPa | 540 |
| UD Flexural Strength | ISO14125 | 5mm/min | MPa | 1200 |
| UD Flexural Modulus | ISO14125 | 5mm/min | MPa | 85000 |
| 0/90 Flexural Strength | ISO14125 | 5mm/min | MPa | 720 |
| 0/90 Flexural Modulus | ISO14125 | 5mm/min | MPa | 53200 |
