Polypropylene Honeycomb Panels

Thermoplastic polypropylene honeycomb panels are a widely accepted new lightweight fiberglass composite sandwich material. Since its invention, it has attracted the attention of various industries. It is made of thermoplastic skin material – CFRT (continuous fiber reinforced thermoplastic) sheet and thermoplastic core material – PP (polypropylene) honeycomb through thermal lamination.

It has the following excellent features:

Lightweight: The density of honeycomb core is low, usually 60~100kg/m³.
High Strength: High compressive and bending strength.
Waterproof：Polypropylene plastic has good resistance to water and many chemicals.
Wear-resistant：The CFRT sheet on the surface is a wear-resistant and scratch-resistant material.
Low Cost: Its price is only a fraction of that of metal honeycomb panels.
Recyclable: Thermoplastic resin is 100% recyclable.

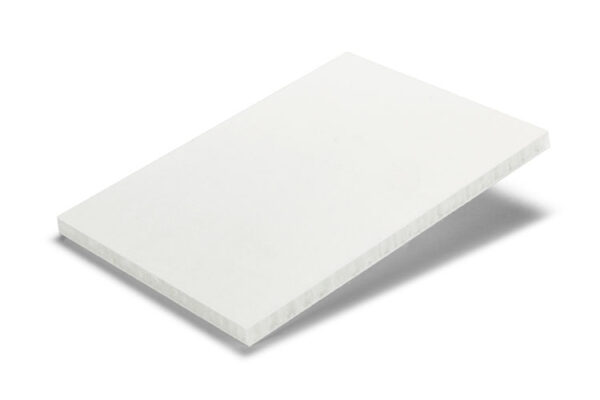

Thermoplastic polypropylene honeycomb panels

Specifications

Skin	CFRT (Continuous Fiber Reinforced Thermoplastic) sheet.
Core	PP (polypropylene) honeycomb.
Surface Treatment	Glossy/Matte/Embossed/Painting.
Thickness	6.0~120mm.
Width	Max 2.8m.
Length	Max 12m.

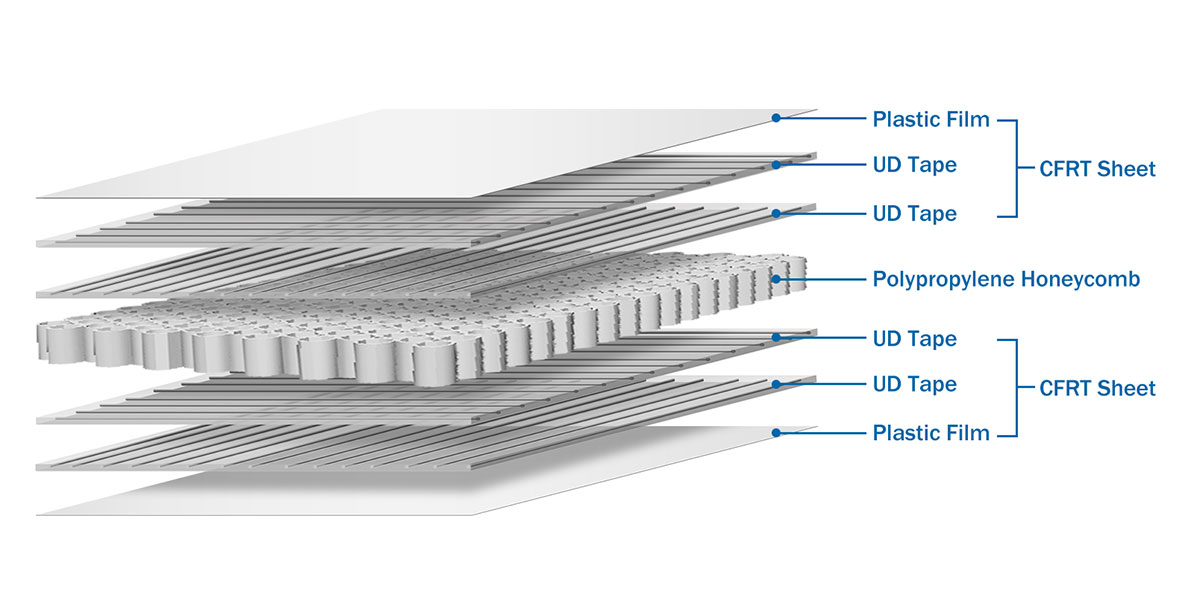

Schematic Diagram

CFRT Sheet

The surface of the CFRT sheet is covered with a protective film to enhance its anti-scratch performance and provide aesthetic effects.
The middle layer consists of multiple layers of UD tapes laid in different directions. (usually 2~3 layers)

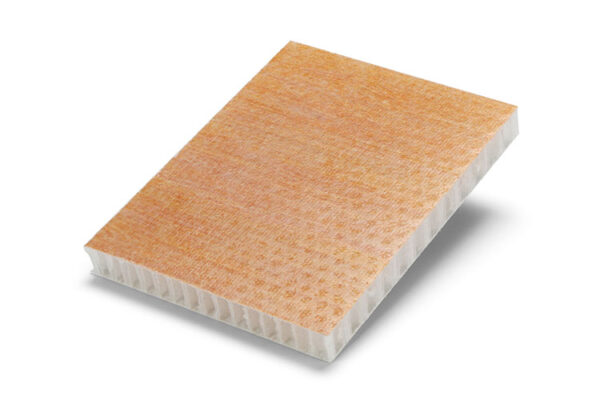

The non-woven fabric at the bottom allows it to be well combined with other material systems.

Polypropylene Honeycomb

Polypropylene (PP) is a thermoplastic polymer made from propylene through the polymerization reaction. The honeycomb structure made of polypropylene material is composed of many hexagonal or diamond-shaped small honeycomb units. These units join together to form a stable structure. Polypropylene honeycomb is lightweight, resistant to corrosion, abrasion, etc.

Processing Methods of Thermoplastic Polypropylene Honeycomb Panels

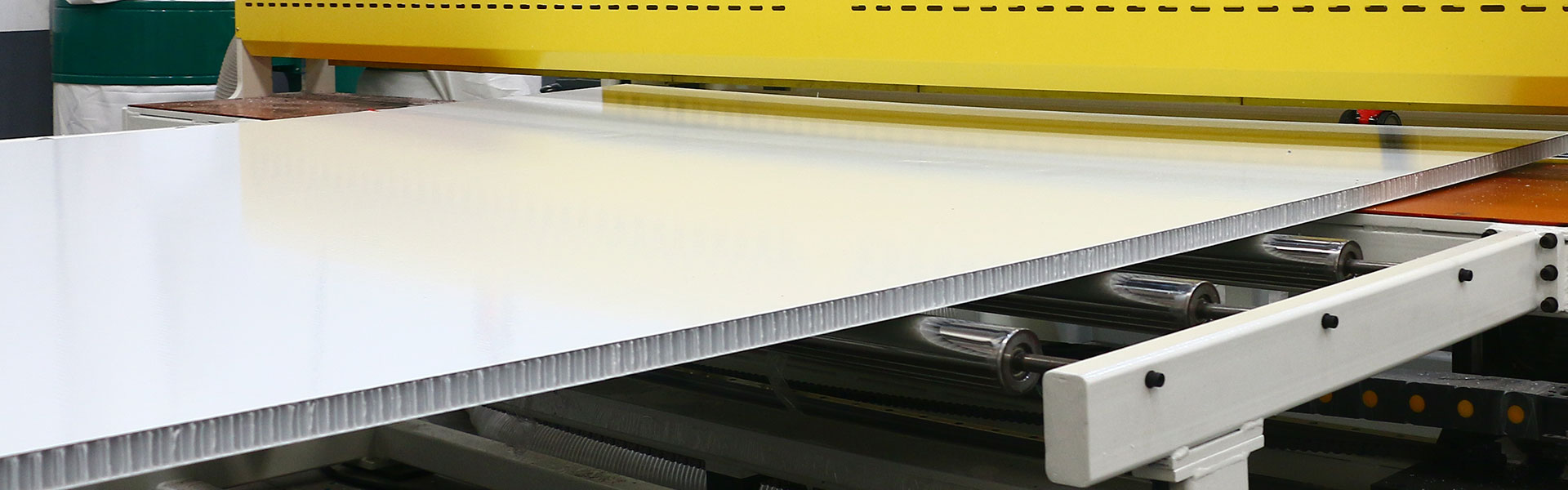

Thermoplastic polypropylene honeycomb panels are glue-free sandwich panels that do not use any adhesive during production. Continuous glass fiber reinforced thermoplastic composite sheet and thermoplastic polypropylene honeycomb core are fused together under heat and pressure, forming a strong and durable composite panel after cooling.

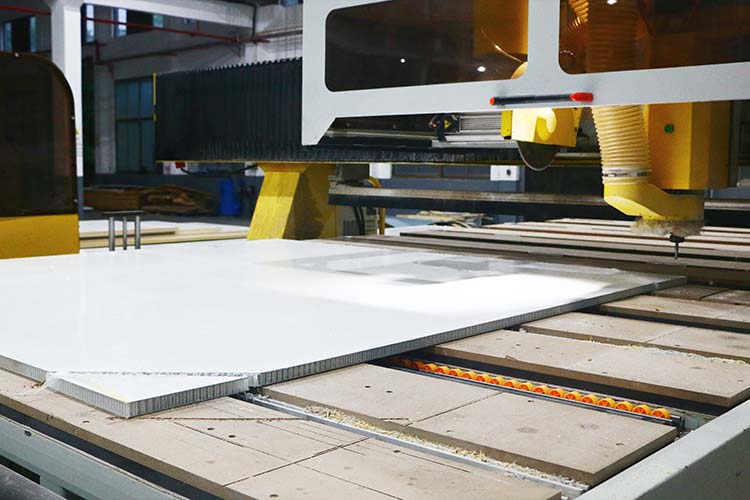

TOPOLO Thermoplastic Honeycomb Panel Production Line

Fully automated.
Seal production.
High precision.
High specification.
High output.
high quality.

Learn more about the production of thermoplastic composites.

UV Protection Treatment of Polypropylene Honeycomb Panels

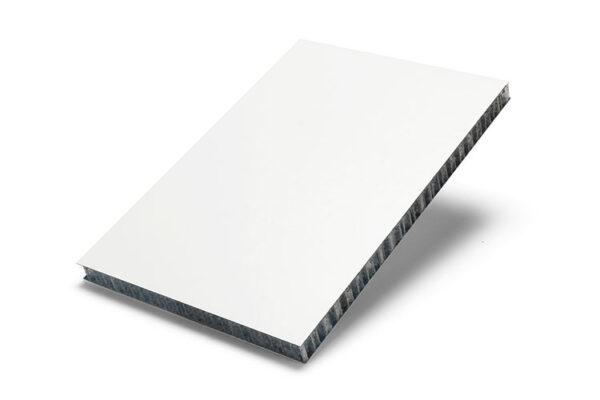

Polymers will slowly weather in their own state, becoming brittle, losing strength, fading, and ultimately completing their service life. Resistance to UV rays in order to slow down this process has been a long-standing research issue for polymers. The carbon black UV-resistant honeycomb composite panel developed by TOPOLO has good weather resistance and can fully adapt to the outdoor environment.

Surface Treatment of Polypropylene Honeycomb Panels

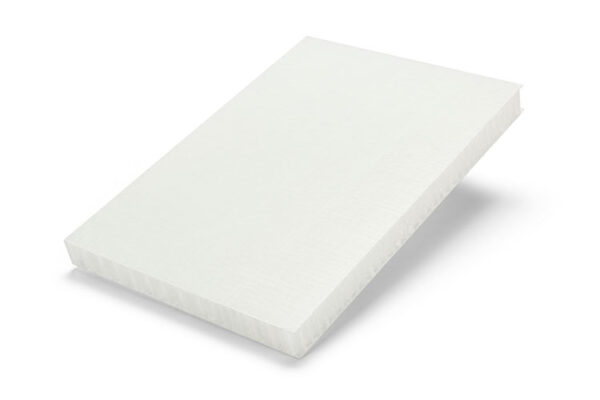

Bare: No film or painting on the surface.

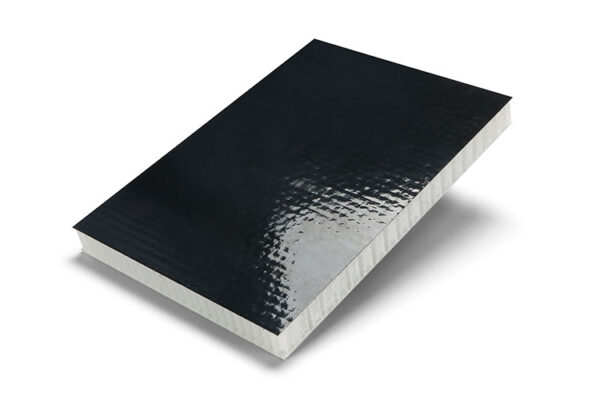

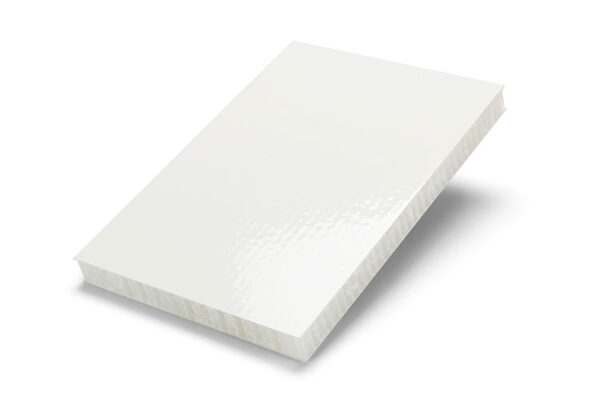

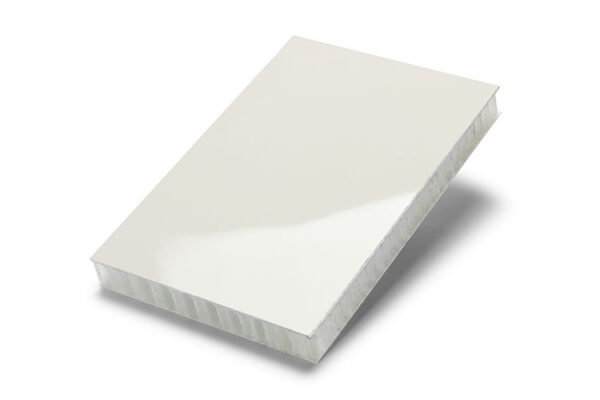

Film: A protective film that can cover high-gloss or matte surfaces.
Embossing: The surface can be embossed with various textures.
Painting: A variety of customized patterns or textures can be sprayed onto surfaces.

Application Areas

Thermoplastic honeycomb panels have made outstanding contributions to lightweighting in various industries and are widely used to replace metal and wood.

Box Bodies: Dry cargo boxes, RV bodies, flight cases, mobile toilets, mobile houses, etc.

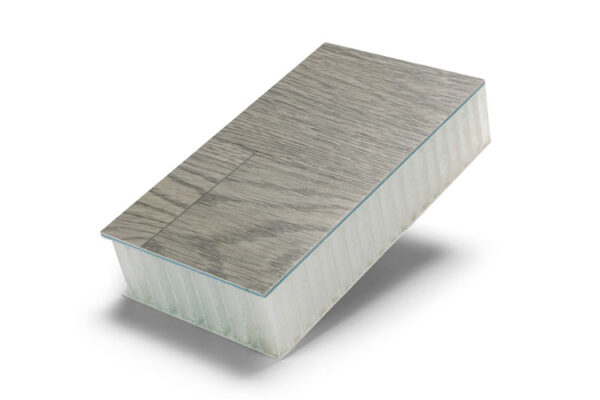

Flooring: RVs, yachts, trucks, buses, scaffolding boards, farms, ladders, ramps, etc.

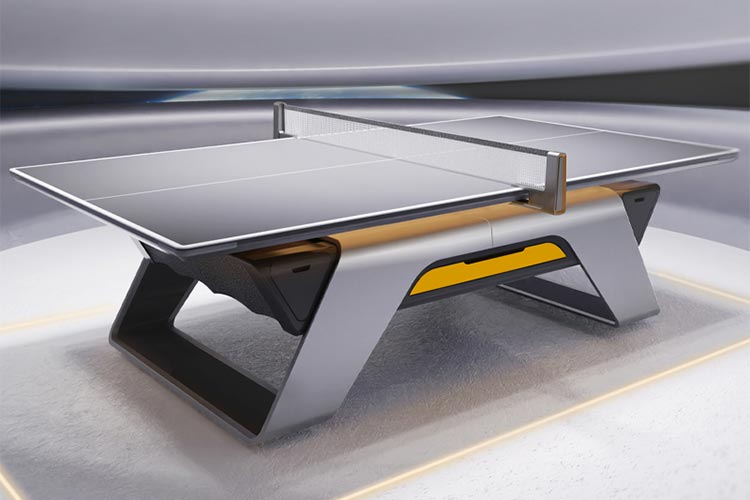

Sports Products: Thermoplastic composite sandwich panels can reduce the weight and increase the strength of sports equipment. Such as pickle paddles, basketball backboards, etc.
Other Fields: building formworks, solar back panels, countertops, baffles, partitions, etc.
