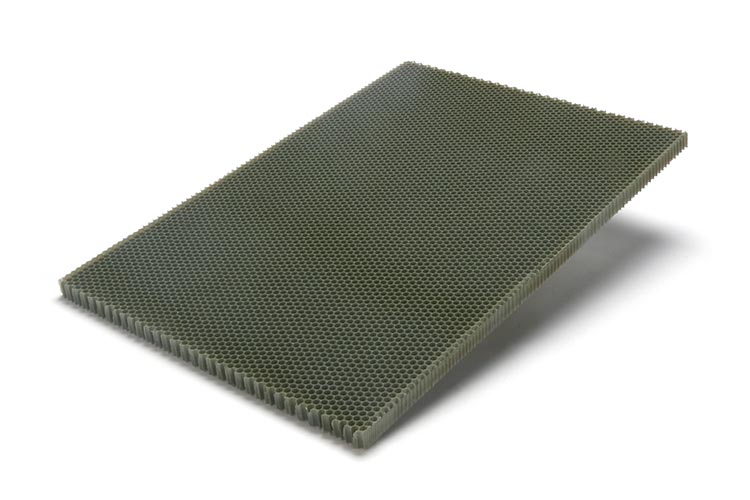

Polycarbonate honeycomb core is a structurally stable thermoplastic material. Available in grey and transparent colors, it operates in a temperature range of -40 to +110°C.
Features
- Lightweight.
- Rigid.
- Insulation.
- Refractory.
- Preservative.
- Antifungal.
- Energy absorption.
Specifications
| Model | Core diameter (mm) | Density (KGS/M3) | Standard color | Common Size (mm) | Thickness (mm) | Thickness tolerance (mm) |
| PC3.0 | 3 | 110 | Dark grey | 1250*84*20 | 2-80 | ±0.3 |
| PC3.5 | 3.5 | 90 | Grey | 1250*90*20 | 2-80 | ±0.3 |
| PC3.5 | 3.5 | 90 | Transparent | 1250*60*20 | 2-80 | ±0.3 |
| PC6.0 | 6 | 70 | Grey | 1250*85*25 | 5-80 | ±0.3 |
| PC8.0 | 8 | 85 | transparent | 1250*30*50mm | 5-80 | ±0.3 |
Applications
- Windows
It can be applied to windows to save energy consumption. Windows installed with transparent polycarbonate honeycomb can reduce heat loss by 80% compared to ordinary windows. - Greenhouse
It can be directly applied to the construction of agricultural greenhouses. - Solar Energy
It can be applied to solar air heating, heating and drying. - Air Purification
Polycarbonate honeycomb activated carbon curtains are widely used in air purifiers, air conditioners, air conditioning fans, exhaust production equipment, etc. - Wastewater Treatment
It is used as a sand removal structure in the treatment of wastewater and liquids in domestic and industrial applications. - Other Applications
sandwich panels, energy-absorbing structures.
