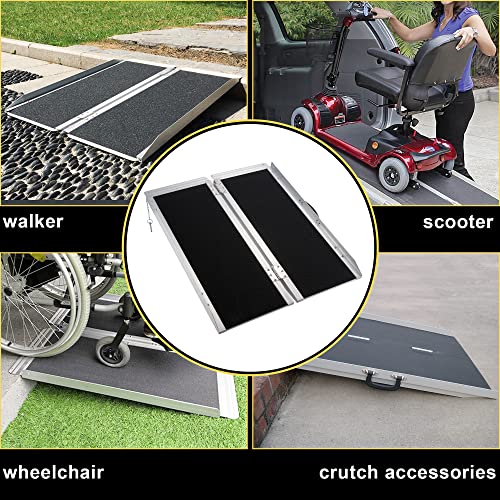

In order to make your wheelchair and scooter easily overcome the obstacles of steps, curbs and doorways, we have uniquely designed a kind of honeycomb panels for anti-slip ramps. Their width is suitable for most scooters, walkers, wheelchairs and two-wheeled vehicles (not suitable for motorcycles) on the market.
Product Parameter Table
| Length | Within 12 meters | Area weight | 5-10kg/㎡ |
| Width | Within 3.2 meters | Flexural strength | 135 MPa |
| Thickness | 6-120mm | Maximum load | ≤2815N |
| Surface pattern | Customized | UV resistant grade | F1 |
| Core material density | 60-160kg/m³ | Flame retardant grade | B2 |
Composition Materials

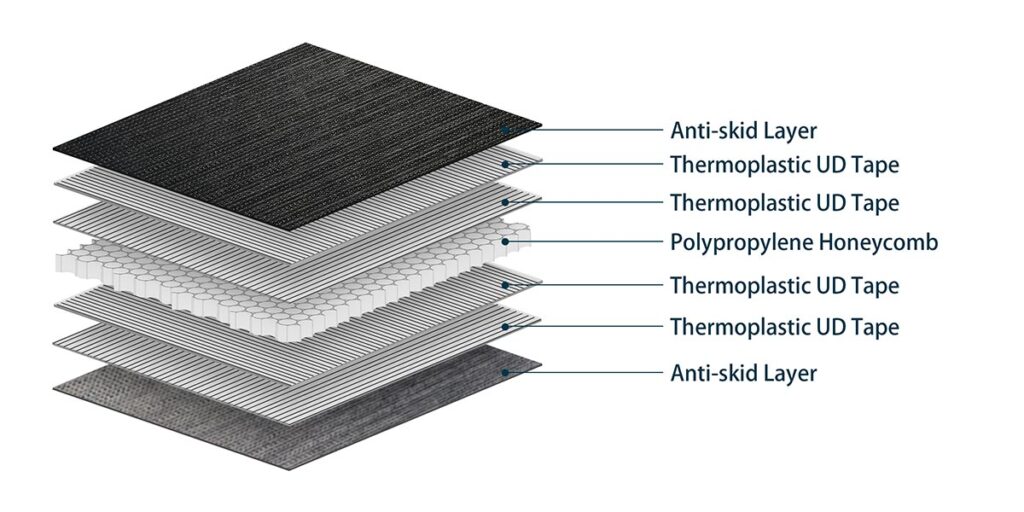

The main body of the anti-slip ramp is our customized anti-slip thermoplastic polypropylene honeycomb panel, which consists of two layers of anti-slip continuous fiber reinforced thermoplastic sheet and one layer of polypropylene honeycomb core material. They can replace traditional wooden and metal anti-slip panels to achieve a lighter, more durable and safer operating platform.
Application Scenarios of Anti-slip Ramps

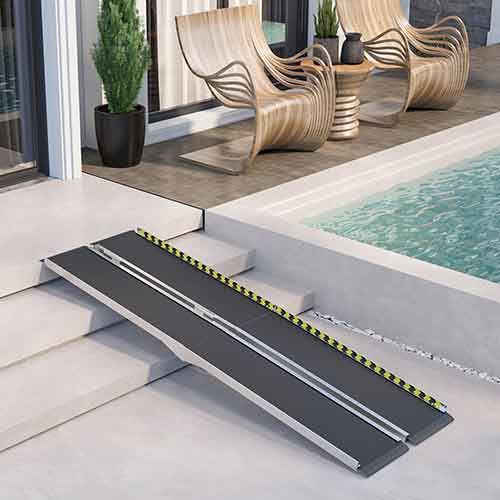

Anti-slip ramps can be used in factories, offices, homes, school passages, paths and other scenes to solve the problem of slippery and dangerous ramps, decks and walkways. Our honeycomb anti-slip ramps can make your travel more convenient.
Product Advantages
- Waterproof and Anti-corrosion
Thermoplastic honeycomb panels are waterproof and moisture-proof, ensuring that the ramp surface always remains dry and can also prevent erosion by rain and common chemicals.
- High Traction
The anti-slip ramp is equipped with a non-slip high-traction surface, with side rails to prevent wheelchairs and walkers from deviating from the surface, and pre-drilled and locked pins to ensure that the ramps are fixed in place when in use.
- UV-resistant
We also cover the surface of the honeycomb panels with an anti-UV film to reduce the adverse effects of UV rays on the anti-slip ramp and extend its service life.
- High Load Capacity
This kind of lightweight and portable honeycomb anti-slip ramps can carry up to 400 kg. Wide enough to accommodate standard wheelchairs.
- Easy to use

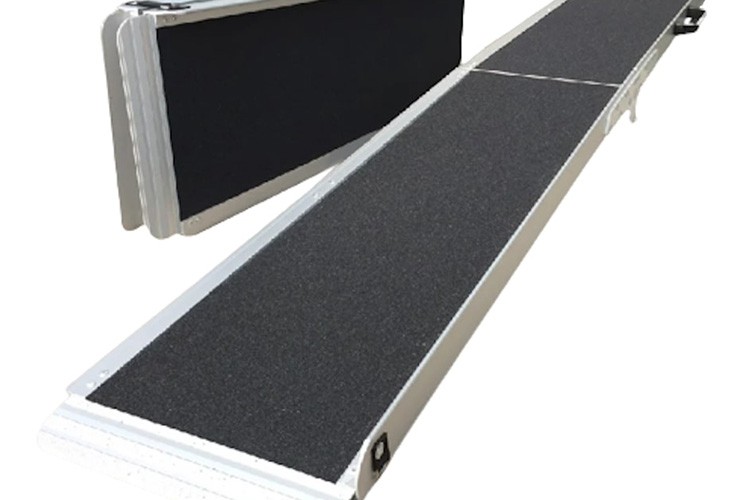

Foldable design allows the entire ramp to be folded up longitudinally like a suitcase, making the ultimate use of space for your storage.
- Absolutely safe
The ramp is fixed with locking pins during use, and there are high-visibility safety borders (30 mm high) on both sides to reduce the risk of tripping and prevent users from rolling down the ramps.
- Easy to cut
Honeycomb panels are easy to process, can be easily cut and connected into any size or shapes.
Anti-slip Ramps Expert

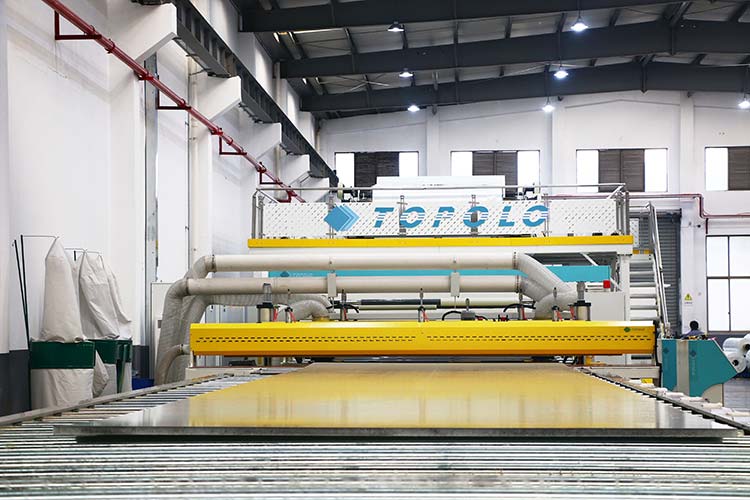

TOPOLO’s factory has an internationally leading fully automatic thermoplastic production line that can produce 10,000 square meters of high-quality thermoplastic honeycomb panels every day. We provide full customization services from material selection, design, to production and transportation to meet the needs of your different application scenarios.
