Fiberglass plywood typically refers to a type of plywood that has a fiberglass overlay or reinforcement. This combination provides additional strength, durability, and resistance to moisture and weathering. It’s commonly used in applications where these properties are beneficial, such as in truck bodies, trailers, boats, and various construction projects requiring a robust and weather-resistant material.

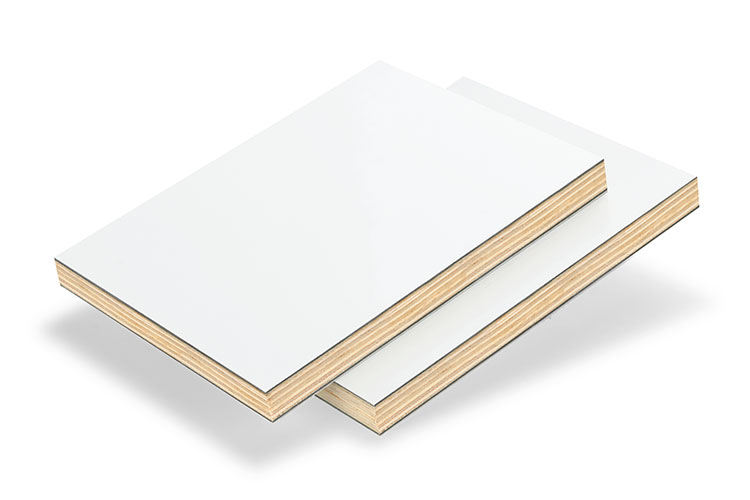

New Fiberglass Plywood Panels
The surface material of traditional fiberglass plywood is thermosetting FRP (fiberglass reinforced plastic). It can improve the waterproof, moisture-proof and fire-proof properties of plywood and greatly increase its strength. The surface material of fiberglass plywood developed by TOPOLO is a CFRT (continuous fiber reinforced thermoplastic), which is a new type of FRP material made of thermoplastic matrix resin and continuous fiber. It not only retains these advantages of FRP facing plywood, but also makes up for its inherent defects.
The advantages of CFRT replacing FRP are:
- Thinner and lighter: Its density is lower than FRP, and the thickness of CFRT with the same strength is less than half of FRP.
- Higher strength: It can withstand more impact than FRP.
- More durable: Wear-resistant, scratch-resistant, and not easy to deform.
- More economical: Reasonable price, lower than FRP.
- More environmentally friendly: Recyclable.
Specifications
| Skin | CFRT (Continuous Fiber Reinforced Thermoplastic) sheet. |
| Core | Plywood. |
| Surface Treatment | Glossy/Matt PET film. |
| Thickness | 6.0~50mm. |
| Width | Max 2.8m. |
| Length | Max 12m. |

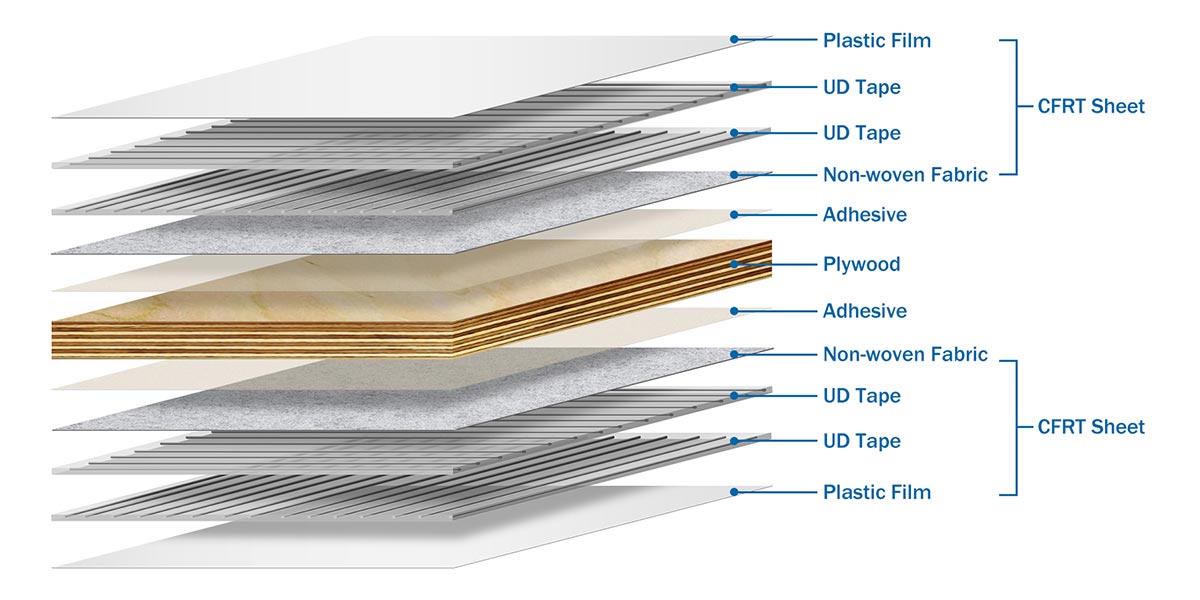

Schematic Diagram
- The surface of the CFRT sheet is covered with a protective film to enhance its anti-scratch performance and provide aesthetic effects.
- The middle layer consists of multiple layers of UD tapes laid in different directions. (usually 2~3 layers)
- The non-woven fabric at the bottom allows it to be well combined with other material systems.

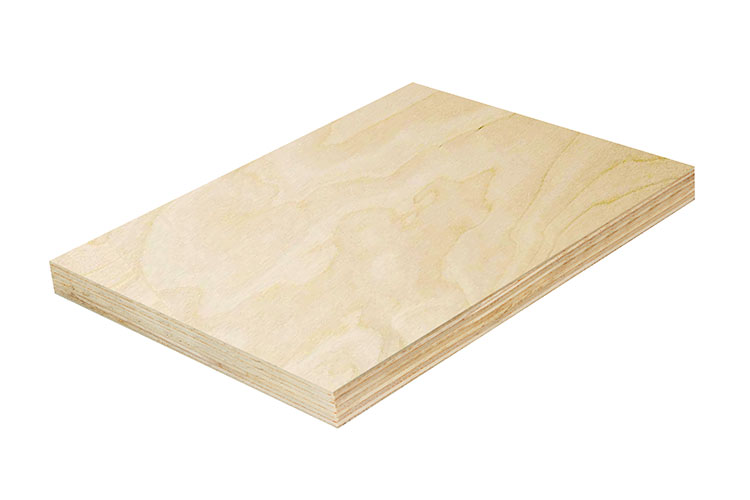

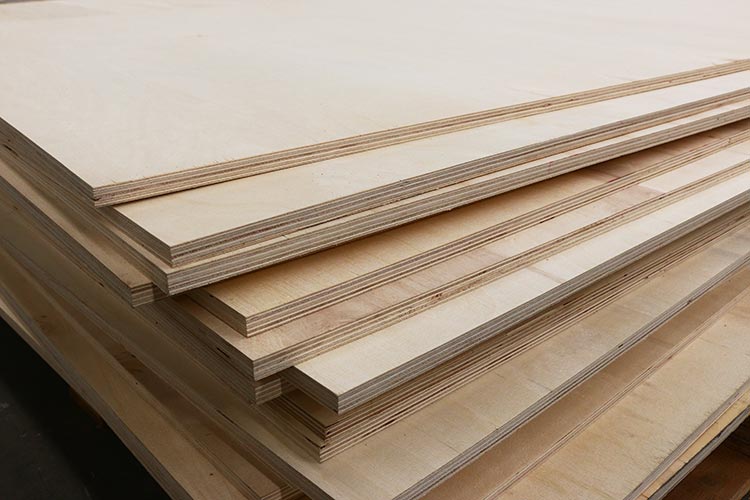

We choose poplar, birch, eucalyptus, pine and other plywood as core materials. After being treated with waterproof, fireproof and insect-proof, they are not easy to deform or rot in humid or salty environments, and maintain structural stability for a long time.
The strength of the adhesive is the key to ensuring the stable performance of the sandwich panel. Our high-performance environmentally friendly glue is heat-resistant and low-temperature resistant. It has no peculiar smell after solidification, no volatilization and will not cause harm to the human body.
We customize fiberglass plywood of different specifications for your projects.
- Strictly select high-quality plywood raw materials.
- Advanced thermoplastic composite production line produces top-grade CFRT sheets.

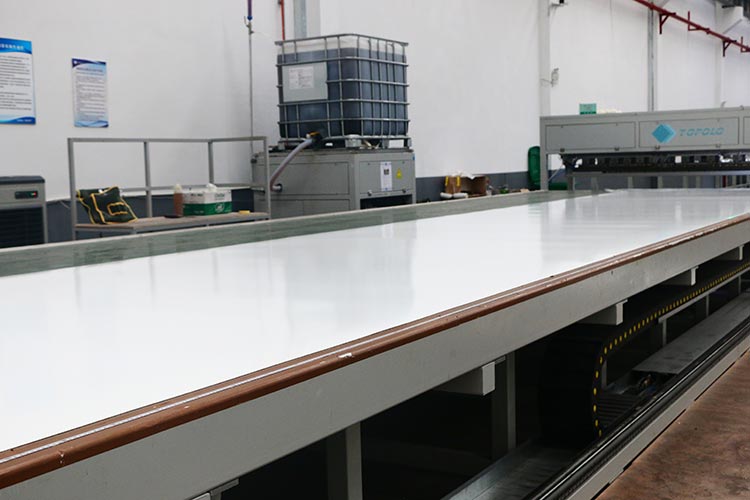

- Large vacuum composite panel production line to meet the current production of panels of any size.

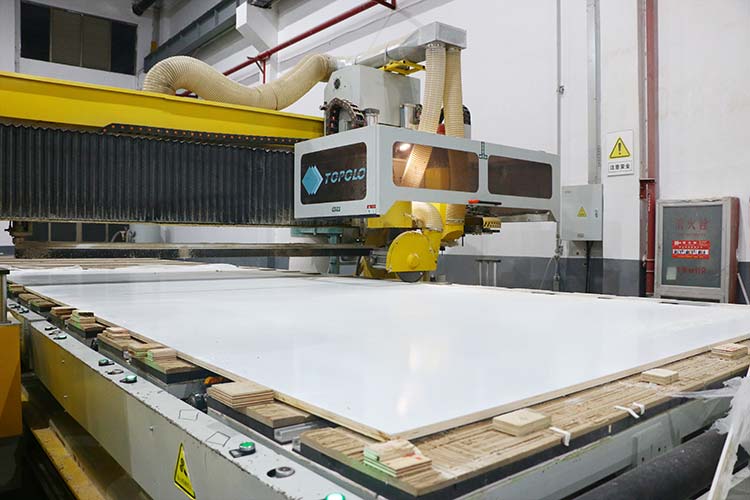

- CNC processes any required shape.

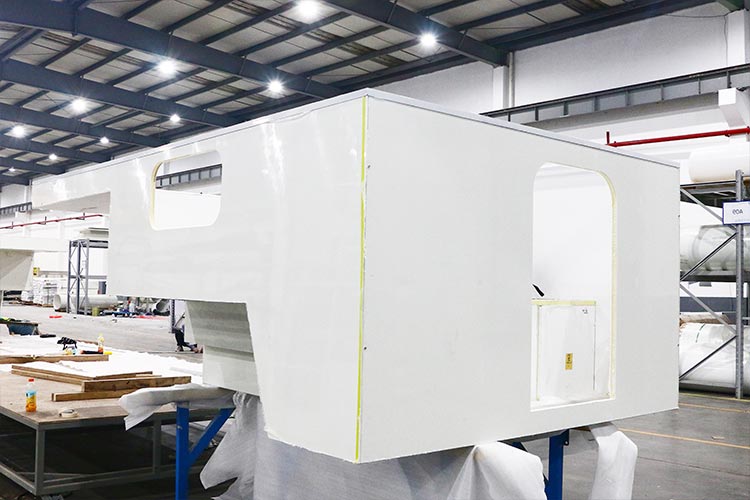

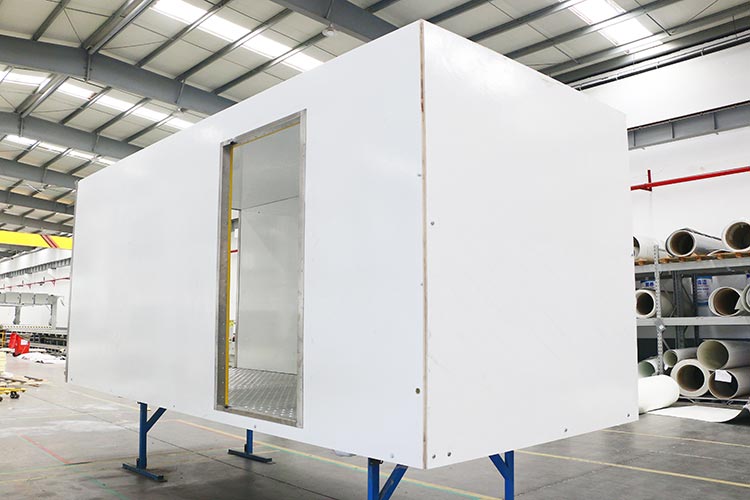

Application Cases
