CFRT Sandwich Panels
Provide More Reliable Lightweight Solutions
CFRT sheets can be combined with a variety of foam systems through adhesives to form CFRT sandwich panels. As an economical and practical thermoplastic skin material, CFRT can replace thermoset FRP sheets in many fields. Its many advantages are reflected in:
- Lightweight.
- Heat insulation.
- Resistant to scratches.
- Waterproof.
- Impact resistant.
- Affordable.
Specifications
| Skin | CFRT (Continuous Fiber Reinforced Thermoplastic) sheets. |

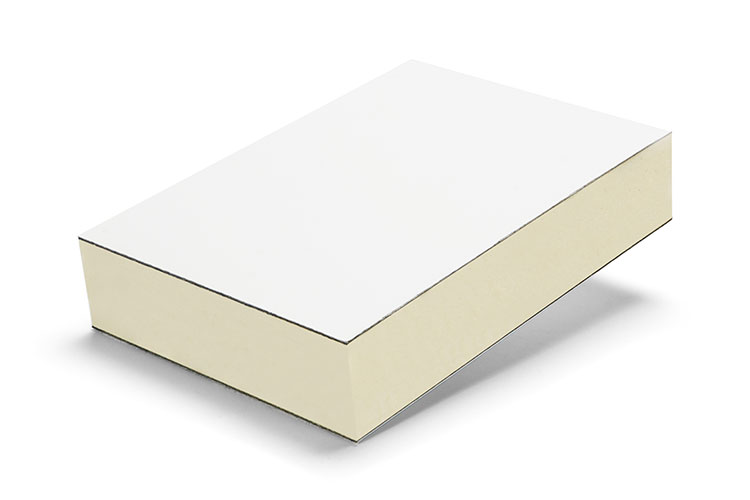

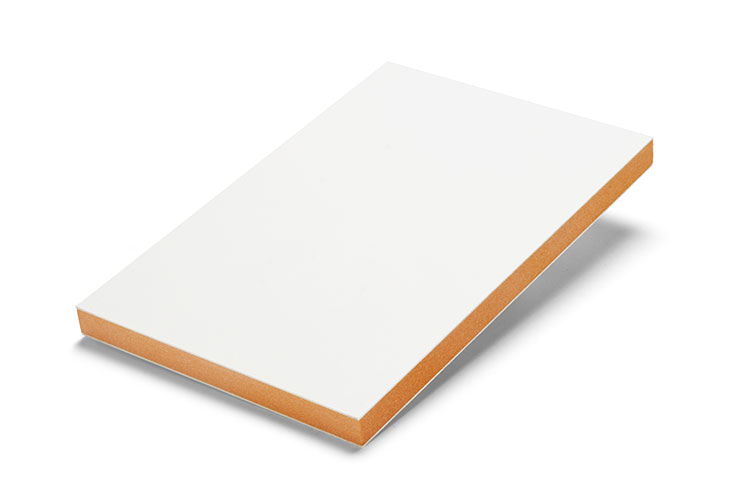

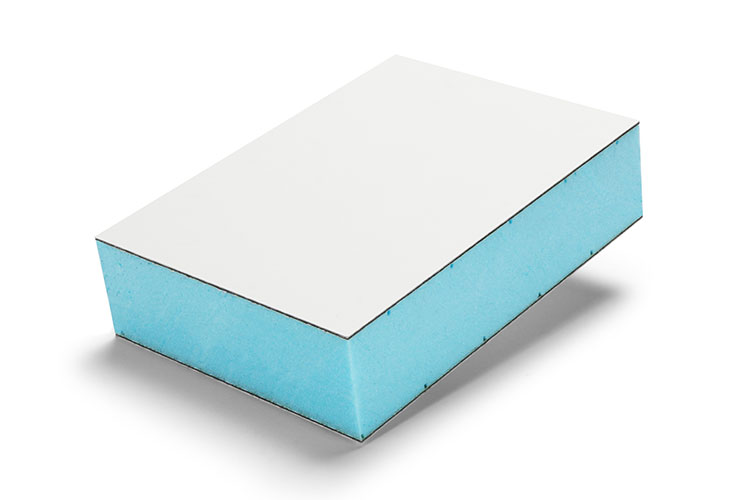

| Core | XPS (extruded polystyrene) foam; PU (polyurethane) foam; PVC (polyvinyl chloride) foam. |
| Length | Max 12m. |
| Width | Max 2.8. |
| Thickness | 6.0mm~120mm. |

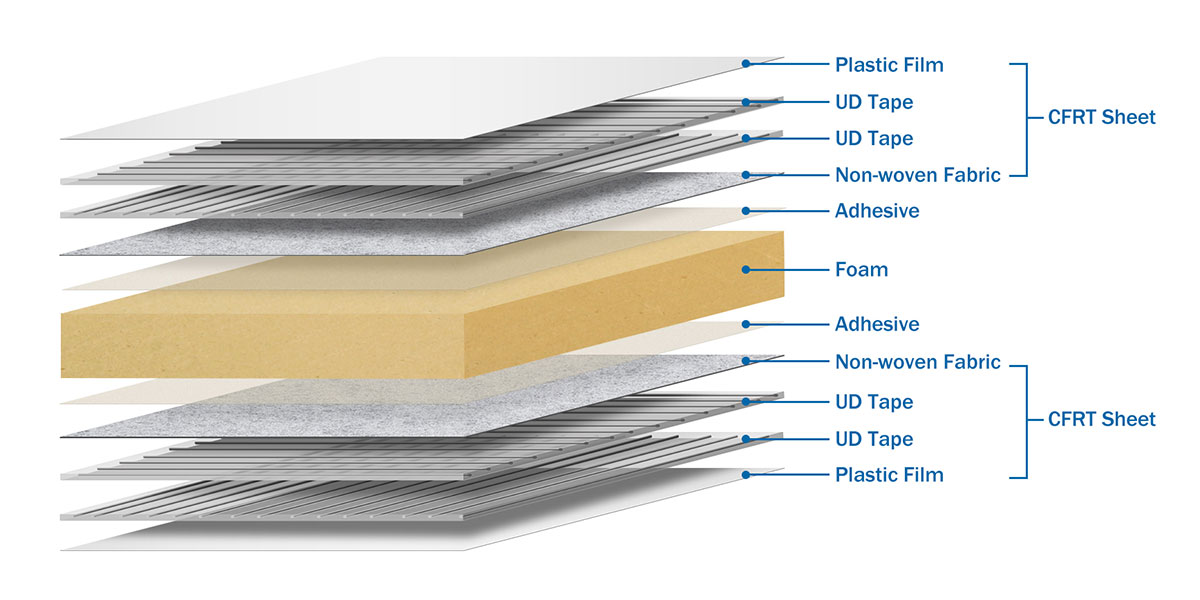

Structural Diagram
- The surface of the CFRT sheet is covered with a protective film to enhance its anti-scratch performance and provide aesthetic effects.
- The middle layer consists of multiple layers of UD tapes laid in different directions. (usually 2~3 layers)
- The non-woven fabric at the bottom allows it to be well combined with other material systems.
Closed-cell rigid foam is dimensionally stable, thermally insulating, waterproof and moisture-proof.
The strength of the adhesive is the key to ensuring the stable performance of the sandwich panel. Our high-performance environmentally friendly glue is heat-resistant and low-temperature resistant. It has no peculiar smell after solidification, no volatilization and will not cause harm to the human body.
CFRT Sandwich Panels VS FRP Sandwich Panels
| Item | CFRT | FRP |
| Impact Resistance | Excellent | Poor |
| Corrosion Resistant | Good | Good |
| Dimensional Stability | Average | Good |
| Heat Resistance | Poor | Good |
| Waterproof | Good | Good |
| Surface Brightness | Average | Excellent |
| Recyclability | Yes | No |

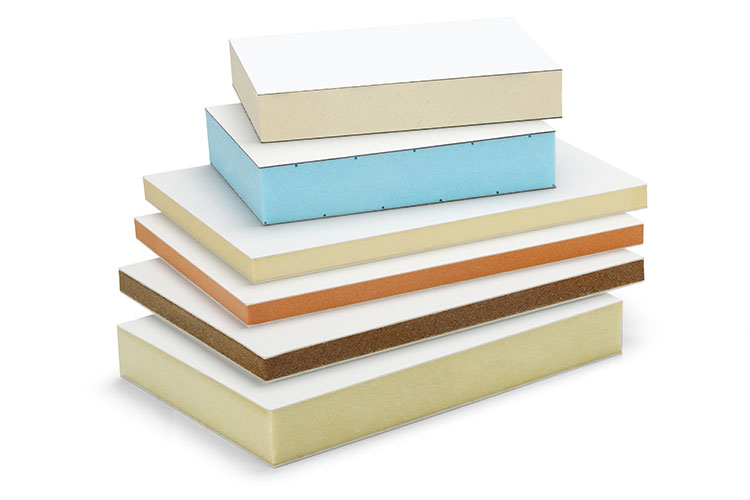

CFRT Sandwich Panel Products

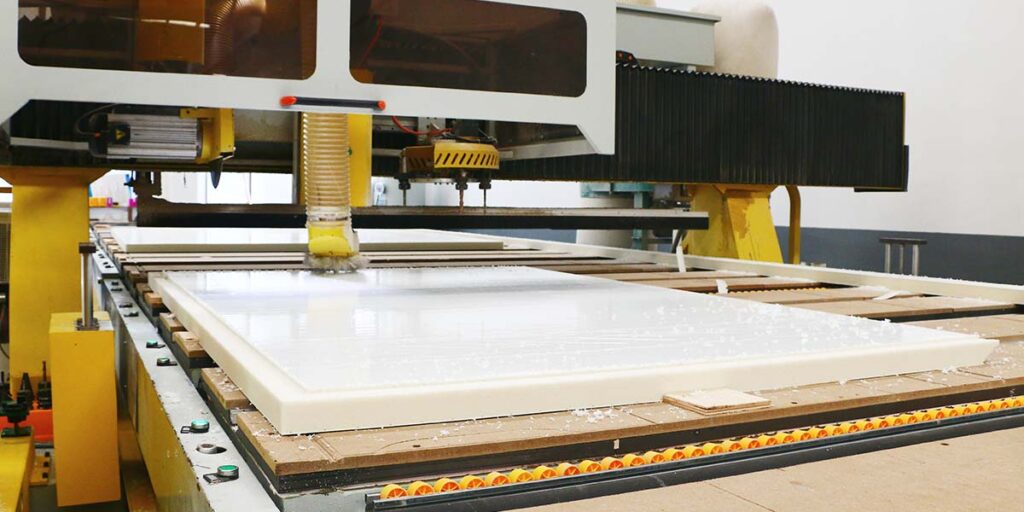

CNC Machining for CFRT Sandwich Panels
The panels are processed with high precision through a high-speed CNC platform. A series of complex processing operations such as cutting, drilling, grinding, etc. can be completed quickly, thereby achieving error-free batch processing of panels.
Our CNC machining advantages
- 5-axis synchronized CNC machine.
- 12m large size operating platform.
Applications

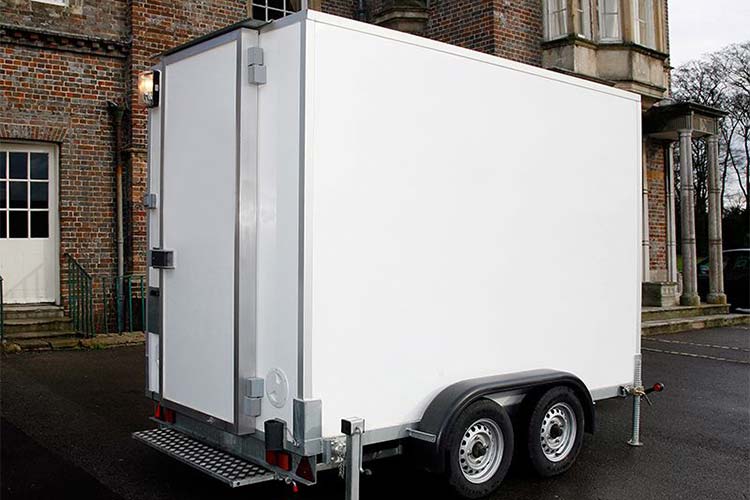

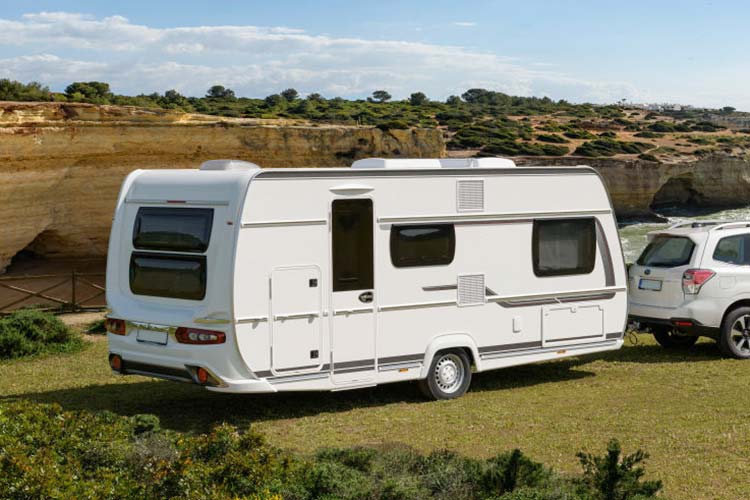

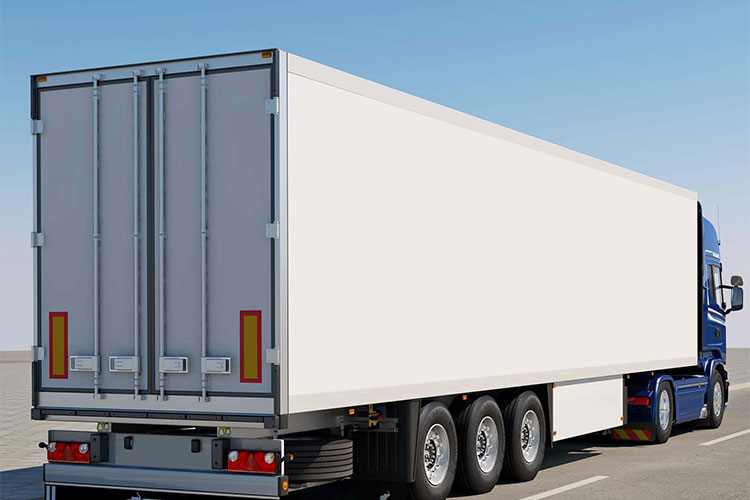

Due to its excellent properties such as lightweight and high-strength thermal insulation, foam core CFRT sandwich panels are widely used in various facilities for thermal insulation purposes. Such as refrigerated trucks, mobile cold rooms, camping RVs, etc.
